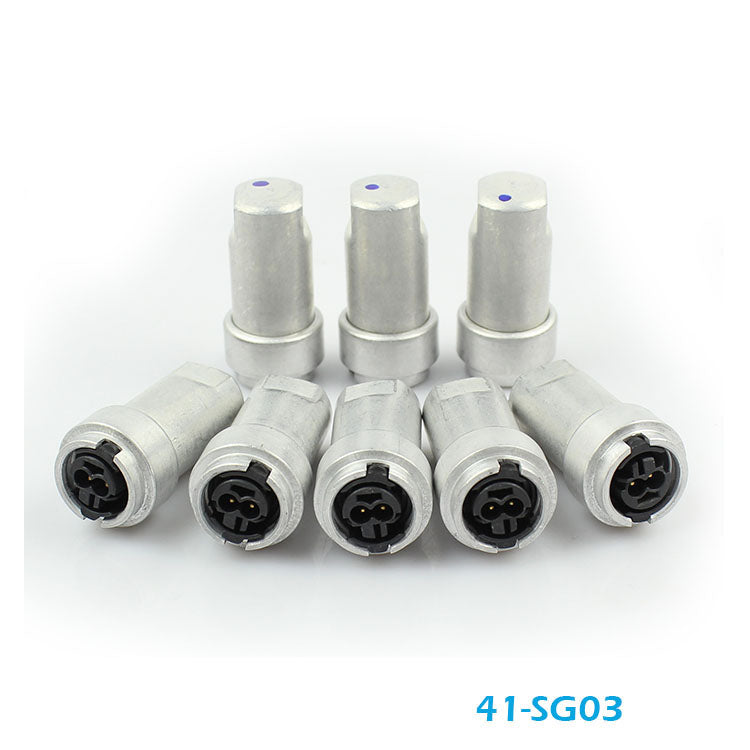

Micro Gas Generator (SG-03)
Micro Gas Generator (SG-03)
Regular price
$7.80 USD
Regular price
Sale price
$7.80 USD
Quantity
Couldn't load pickup availability
Warm Reminder: Inflators belong to UN0323 Hazardous 1.4S, we will not ship by air or sea freight , only support to local delivery.
| Model: | MP1086(41) | ||
| Bridge resistance： | 2.0Ω±0.3Ω | ||
| Insulation resistance： | DC500V，≥1MΩ | ||
| Fire Current: | 1.2A×2ms | ||
| No Firing current： | 0.4A×10s | ||
| Type I | Green | AMPHENOL Co. | C252 10B024 000 1 S |
| Type Ⅱ | Yellow | TYCO/AMP Co. | 1-353380-7 |
| Type Ⅲ | Yellow | AMPHENOL Co. | C252 10B024 0011 |
|
10ml Closed Bomb Test
|
|||
| Keeping Seatbelt inflator respectively in -35 ℃, +23 ℃, +85 ℃ temperature for not less than 2h, and in a special volume of 10ml sealed device, through a direct current of 1.2A to perform P-t curve test, the ignition time is less than 2ms, the peak time is 7ms-16ms, peak pressure is 65MPa ~ 85MPa. | |||
