Monitor Your Seat Occupany Status Seat Belt Reminder Sensor FEW003
Monitor Your Seat Occupany Status Seat Belt Reminder Sensor FEW003
Monitor Your Seat Occupany Status Seat Belt Reminder Sensor FEW003

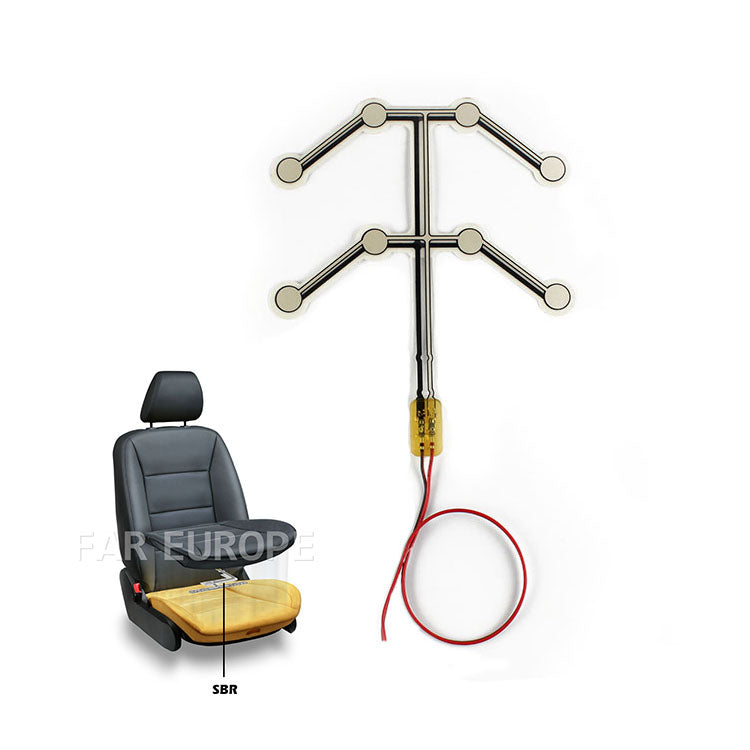

The seat belt reminder sensor mat detects occupants in passenger and rear seats.A seat belt reminder system in the vehicle triggers a warning light and/or an audible chime,reminding unbuckled seat occupants to fasten their seat belts.
Seat belts are part of a passive safety system and are mainly intended to reduce injuries by preventing car occupants from hitting hard interior elements of the vehicle, hitting other passengers or being ejected from the vehicle. In the event of a crash, safety belts reduce the risk of fatal injury to front seat occupants by 45% in cars and by 60% in light trucks. Considering 80% of unbuckled occupants put on their seat belt thanks to an SBR, it if one of the most effective ways of preventing death or injury in a car crash.
Could be custom-made
If you have any requirements,such as model, quantity of sensor point and so on,please send us email,let’s discuss in detail.We can produce base on your requirements. Welcome to inquiry!
| Model: | FEW003 |
| Item Name: | Seat belt reminder/seat belt sensor/Dynamic pressure sensor |
| Pressure Range: | 0.1 N/cm2 – 100N/cm2 |
| Output Signal: | Resistance (R) |
| Thickfilm Sandwich: | 0.15mm – 1.0mm |
| Durability: | >10 million activations |
| Minimum Active Area: | 5mm x 5mm |
| Service: | Customer specific design |
Couldn't load pickup availability
Size: 160X193mm
Model Number: FEW012
Warranty: 2 Years
Thickfilm sandwich: 0.15mm – 1.0mm
Durability: Application: For any car seat.
Feature: Precision,Easy seat integration,Reliability.
Service: OEM,ODM
Quality System: ISO/TS16949
● Easy seat integration:Our technology is highly flexible,making inserting the mat into the vehicle seat easy.
● Cost-efficiency:Our development cycles are short and our replacement procedures simple.There is no need for any initial calibraton or recalibration during the entire lifetime of the sensor mat.
● Reliability:The sensor maintains robust performance regardless of temperature,humidity and age.It is not affected by seat adjustments,repositioning or shocks and vibrations.
| Model | FEW012 |
|---|---|
| Item Name | Seat belt reminder / Seat belt sensor / Dynamic pressure sensor |
| Pressure Range | 0.1 N/cm² – 100 N/cm² |
| Output Signal | Resistance (R) |
| Thickfilm Sandwich | 0.15mm – 1.0mm |
| Durability | > 10 million activations |
| Minimum Active Area | 5mm × 5mm |
| Service | Customer specific design |
| M.O.Q. | 500 pcs |
| Stock Available | Yes |
| Delivery Time | 20 Days against order confirmation |
| Nearest Port | Ningbo / Shanghai, China |
| Weight | 0.4 kg |
|---|---|
| Model No. | FEW012 |
| Service | OEM, ODM |
| Payment Term | T/T, Western Union, Paypal |
| Trademark | Fareurope / OEM |
| Origin | Zhejiang, China |
| Feature | Precision, Easy Seat Integration, Reliability |
| Shipment | Express, Air, Sea |
| Quality System | ISO/TS16949 |
| Specification | Customized |
