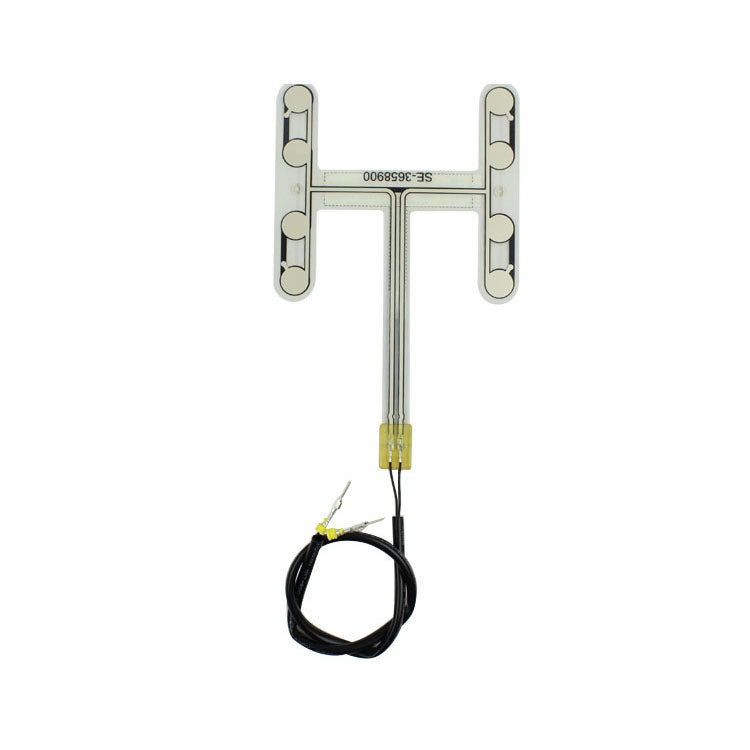

Seat Belt Reminder FEW013
Seat Belt Reminder FEW013
Regular price
$8.50 USD
Regular price
Sale price
$8.50 USD
Quantity
Couldn't load pickup availability
Quick Details
Type: Pressure Senor
Size: 160X193mm
Model Number: FEW001
Warranty: 2 Years
Thickfilm sandwich: 0.15mm – 1.0mm
Durability: Application: For any car seat.
Feature: Precision,Easy seat integration,Reliability.
Service: OEM,ODM
Quality System: ISO/TS16949
Size: 160X193mm
Model Number: FEW001
Warranty: 2 Years
Thickfilm sandwich: 0.15mm – 1.0mm
Durability: Application: For any car seat.
Feature: Precision,Easy seat integration,Reliability.
Service: OEM,ODM
Quality System: ISO/TS16949
Advantages
● Precision:SBR sensor can accurately detect if the seat is occupant.
● Easy seat integration:Our technology is highly flexible,making inserting the mat into the vehicle seat easy.
● Cost-efficiency:Our development cycles are short and our replacement procedures simple.There is no need for any initial calibraton or recalibration during the entire lifetime of the sensor mat.
● Reliability:The sensor maintains robust performance regardless of temperature,humidity and age.It is not affected by seat adjustments,repositioning or shocks and vibrations.
● Easy seat integration:Our technology is highly flexible,making inserting the mat into the vehicle seat easy.
● Cost-efficiency:Our development cycles are short and our replacement procedures simple.There is no need for any initial calibraton or recalibration during the entire lifetime of the sensor mat.
● Reliability:The sensor maintains robust performance regardless of temperature,humidity and age.It is not affected by seat adjustments,repositioning or shocks and vibrations.
Product Specifications
| Model | FEW013 |
|---|---|
| Item Name | Seat Belt Reminder / Seat Belt Sensor / Dynamic Pressure Sensor |
| Pressure Range | 0.1 N/cm² – 100 N/cm² |
| Output Signal | Resistance (R) |
| Thick Film Sandwich | 0.15 mm – 1.0 mm |
| Durability | >10 million activations |
| Minimum Active Area | 5 mm × 5 mm |
| Service | Customer-specific design |
| M.O.Q. | 500 pcs |
| Stock Available | Yes |
| Delivery Time | 20 Days against order confirmation |
| Nearest Port | Ningbo / Shanghai, China |
Additional Information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 25 × 10 × 9 cm |
