Micro Gas Generator MP853(3)
Warm Reminder: Inflators belong to UN0323 Hazardous 1.4S, we will not ship by air or sea freight , only support to local delivery.
Seat belt inflator is also known as micro gas generator (MGG), which is a gas-generating device used for a mechanism in which the seatbelt is tightened in the case of a motor vehicle collision. When the seatbelt is tightened, the body of the occupant is affixed in the correct position and is aligned with the airbag. This enhances the effectiveness of the airbag, thereby ensuring the safety of the passenger.
| Model: | MP853(3) | ||
| Item Name: | #3 seatbelt inflator | ||
| Bridge resistance： | 2.0Ω±0.3Ω | ||
| Insulation resistance： | DC500V，≥1MΩ | ||
| Fire Current: | 1.2A×2ms | ||
| No Firing current： | 0.4A×10s | ||
| Type I | Green | AMPHENOL Co. | C252 10B024 000 1 S |
| Type Ⅱ | Black | TYCO/AMP Co. | 1-353380-7 |
|
12.5ml Closed bomb test
|
|||
| Keeping seatbelt inflator respectively at -35 ℃, +23 ℃, +85 ℃ temperature for not less than 2h, and in a special volume of 12.5ml sealed device, through a direct current of 1.2A to perform P-t curve test, the ignition time is less than 5ms, the peak time is less than 20ms, peak pressure is 30MPa ~ 50MPa.
|
|||
|

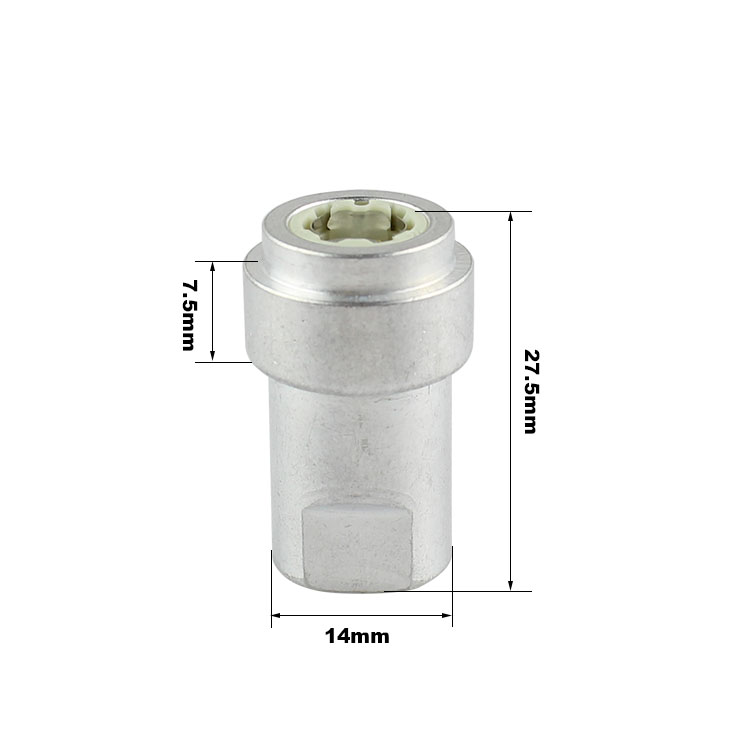

External Dimension
|
|||
 |
|||
You can download our catalog or Youtube to know more details of the goods, and contact us by email fareurope4@gmail.com.
