Retractor for Easy Unwinding and Pulling Out
Claim
- A retractor that is easy to unwind and pull out, including a mounting frame, on which a tape winding shaft is rotatably arranged, and both sides of the tape winding shaft are connected with ratchets, and the mounting frame is movably provided with A swinging piece, the swinging piece is provided with a raised portion that can cooperate with the ratchet to press, and is characterized in that: the swinging piece is connected with a lever, and the lever is connected with a first spring, the The mounting frame is hinged with a positioning clamping arm under the lever, the positioning clamping arm is provided with a clamping slot matched with the lever, and the positioning clamping arm is connected with the second spring, so that the positioning clamping arm is close to On the lever, a push rod is slidably arranged on the mounting frame, and the push rod can push the positioning clamping arm to swing.
- The retractor for easy unwinding and pulling out according to claim 1, characterized in that the mounting frame is arranged in an outer casing, the outer casing is provided with a flip cover, and the flip cover is provided with a cylindrical plug, so The outer casing is provided with a socket for inserting the cylindrical plug, and the flip cover is provided with a bar-shaped slot for the lever to pass through.
The retractor according to claim 1, further comprising a pressing head, one end of the lever is extended with a clamping head, and a clamping head is provided at the clamping head. A ring-shaped slot, a cavity is formed at the bottom of the pressing head, a cylindrical connecting part is arranged in the cavity, a through hole passing through the cylindrical connecting part is formed on the side wall of the pressing head, and the column The inner side wall of the cylindrical connecting part has a clamping block that can be clamped into the annular clamping groove, the side wall of the cylindrical connecting part is provided with a breaking groove on both sides of the clamping block, and the cavity is provided with The baffle plate against which the snap-on head is abutted.
Summary of instruction
The utility model discloses a retractor which is convenient for unwinding and pulling out. There is a swinging piece on the swinging piece, and a convex part that can be pressed together with the ratchet wheel is arranged on the swinging piece. , the mounting frame is hinged with a positioning clamping arm below the lever, the positioning clamping arm is provided with a clamping slot matched with the lever, and the positioning clamping arm is connected with the second spring, so that the positioning clamping arm is installed The arm is abutted on the lever, and a push rod is slidably arranged on the mounting frame, and the push rod can push the positioning and clamping arm to swing. The utility model has the advantages of simple structure and reasonable design, and can realize the automatic positioning of the downward pressing of the lever, thereby facilitating the extraction of the installation belt.
Manual
Retractor for easy unwinding and pulling out
Technical Field
The utility model relates to a retractor processing equipment, in particular to a retractor which is convenient for unwinding and pulling out.
Background technique
Seat belt retractors are mainly used for retracting and locking seat belts. One of the retractors mainly includes an installation frame, on which a reeling shaft is rotatably arranged, and a ratchet wheel is connected to the belt winding shaft, and a swing piece is arranged on the installation frame, and the swing angle of the swing piece is controlled to press the ratchet wheel. Tighten, lock the retractor, and the swinging piece is often controlled by the toggle lever to control the swinging of the swinging piece, thereby realizing the locking or opening of the retractor. When the control lever drives the swinging piece to swing to the opening angle, The swinging piece and the ratchet are staggered so that the reeling shaft can be rotated to unwind the seat belt. In this process, in order to prevent the lever from returning to the position driven by the spring, it is necessary to keep pressing the lever by hand, and then press the lever with the other hand. Pulling out the seat belt is very troublesome.
SUMMARY OF THE INVENTION
In view of the deficiencies of the background technology, the technical problem to be solved by the present invention is to provide a retractor with a simple structure and a reasonable design, which can realize automatic positioning of the lever pressing down, and thus is more convenient for the extraction of the installation belt.
For this reason, the utility model adopts the following scheme to realize:
The retractor, which is easy to unwind and pull out, includes a mounting frame, on which a tape winding shaft is rotatably arranged, both sides of the tape winding shaft are connected with ratchets, and a swing piece is movably arranged on the mounting frame , the swinging member is provided with a raised portion that can cooperate with the ratchet wheel, and is characterized in that: the swinging member is connected with a lever, the lever is connected with a first spring, and the mounting frame is A positioning clamping arm is hinged below the lever, the positioning clamping arm is provided with a clamping slot matched with the lever, and the positioning clamping arm is connected with the second spring, so that the positioning clamping arm is close to the On the lever, a push rod is slidably arranged on the mounting frame, and the push rod can push the positioning clamping arm to swing.
The mounting frame is arranged in an outer casing, the outer casing is provided with a flip cover, the flip cover is provided with a cylindrical plug, the outer casing is provided with a socket for inserting the cylindrical plug, and the flip cover is provided with a socket for inserting the cylindrical plug. The strip slot through which the lever passes.
It also includes a pressing head, one end of the lever is extended with a clamping head, an annular clamping groove is opened at the clamping head, a cavity is opened at the bottom of the pressing head, and a cavity is arranged in the cavity. A cylindrical connecting part, the side wall of the pressing head is provided with a through hole passing through the cylindrical connecting part, the inner side wall of the cylindrical connecting part has a clamping block that can be clamped into the annular groove, the The side walls of the cylindrical connecting part are provided with disconnection grooves on both sides of the clamping block, and a baffle plate that can abut against the clamping head is arranged in the cavity.
By adopting the above technical scheme, the utility model has the advantages of simple structure and reasonable design, which can realize large-scale production; by setting the lever positioning device, when the lever is pressed down to drive the swinging member to separate from the ratchet, the lever can be positioned. , so that it is not necessary to hold down the lever all the time, and it is more convenient to unwind and pull out the seat belt.
Description of drawings
The utility model has the following accompanying drawings:

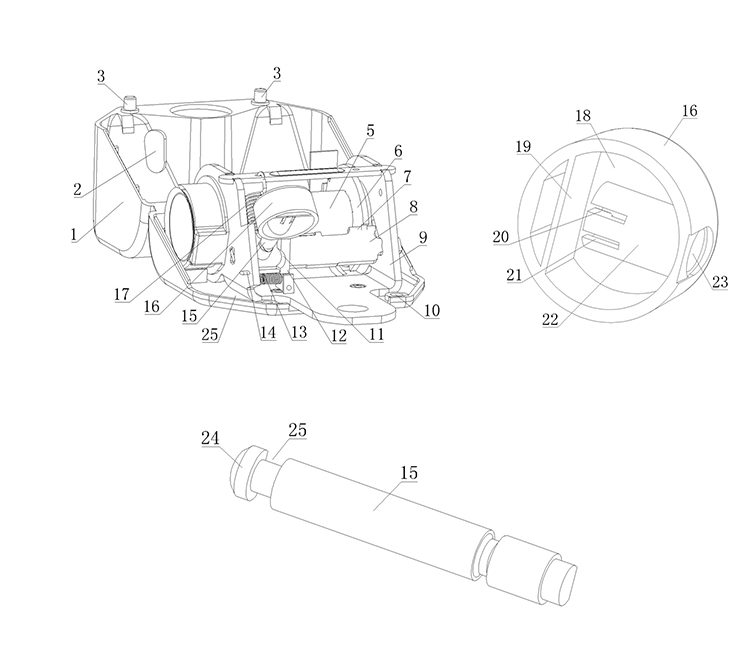

Fig. 1 is the view after the flip cover of the utility model is opened;
Fig. 2 is the structure diagram of the pressing head of the utility model;
FIG. 3 is a structural diagram of the lever of the present invention.
Detailed ways
As shown in the figure, the retractor for easy unwinding and pulling out disclosed by the present utility model includes an installation frame 9, and the installation frame 9 is rotatably provided with a tape winding shaft 5, and both sides of the tape winding shaft 5 are connected with ratchets 6. A swinging member 8 is movably arranged on the mounting frame 9. The swinging member 8 is provided with a raised portion 7 that can cooperate with the ratchet 6 to be pressed tightly. A spring 17, the mounting frame 9 is hinged with a positioning clamping arm 12 below the lever 15, the positioning clamping arm 12 is provided with a slot 11 that cooperates with the lever 15, and the positioning clamping arm 12 is connected with the second spring 13 , so that the positioning clamping arm 12 abuts on the lever 15 , a push rod 14 is slidably arranged on the mounting frame 9 , and the push rod 14 can push the positioning clamping arm 12 to swing. Further, the mounting bracket 9 is arranged in the outer casing 25, the outer casing 25 has a flip 1, the flip 1 has a cylindrical plug 3, and the outer casing 25 is provided with a socket 10 for the cylindrical plug 3 to be inserted, ensuring that the flip 1 is inserted. For the stability of insertion after closing, the flip cover 1 is provided with a bar-shaped groove 2 through which the lever 15 passes. In addition, it also includes a pressing head 16, one end of the lever 15 is extended with a clamping head 24, an annular clamping groove 25 is opened at the clamping head 24, and a cavity 18 is opened at the bottom of the pressing head 16, and the cavity 18 A cylindrical connecting portion 22 is provided, the side wall of the pressing head 16 is provided with a through hole 23 passing through the cylindrical connecting portion 22, and the inner side wall of the cylindrical connecting portion 22 has a clamping block 20 that can be inserted into the annular groove 25. The side walls of the shaped connecting portion 22 are provided with disconnecting grooves 21 on both sides of the clamping block 20, and a baffle plate 19 that can be abutted against the clamping head 24 is arranged in the cavity 18. By setting the pressing head 16, it is more convenient for the user to press the dial Move the lever 15, when assembling the pressing head 16, the through hole 23 on the pressing head 16 can be aligned with the lever 15 and plugged together, the clamping head 24 of the clamping head 24 will first contact and squeeze the clamping block 20, so that the clamping The mounting block 20 can be snapped into the annular snap groove 25, and the snap-on head 24 is just held up by the baffle plate 19 at this time, thereby realizing the positioning and inserting of the pressing head 16 and the lever.
The retractor of the present invention drives the lever 15 to swing downward by pressing the pressing head 16, and then drives the swinging member 8 to swing away from the ratchet 6, so that the belt winding shaft can rotate smoothly to unwind the safety belt. Pull out, and when the lever 15 swings down to the slot 11 on the positioning arm 12, the positioning arm 12 will swing under the action of the second spring 13 and make the slot 11 clamp the lever to realize the For the positioning of the lower swing of the lever 15, when the seat belt is pulled out, the push rod 14 is squeezed to push the positioning arm 12 to swing back. At this time, the lever 15 is no longer positioned by the slot 11, and the first spring 17 It resets under the action of the pulley, and drives the swinging member 8 to swing back, and the ratchet wheel 6 is clamped again to limit the rotation of the winding shaft 5, so as to realize the locking of the retractor.
The utility model is simple in structure and reasonable in design, and can realize large-scale production; by setting the lever positioning device, when the lever is pressed down to drive the swing piece to separate from the ratchet, the lever can be positioned, so that the lever does not need to be pressed all the time. , it is more convenient to unwind and pull out the seat belt.
